[GB] RF-8X Accessories

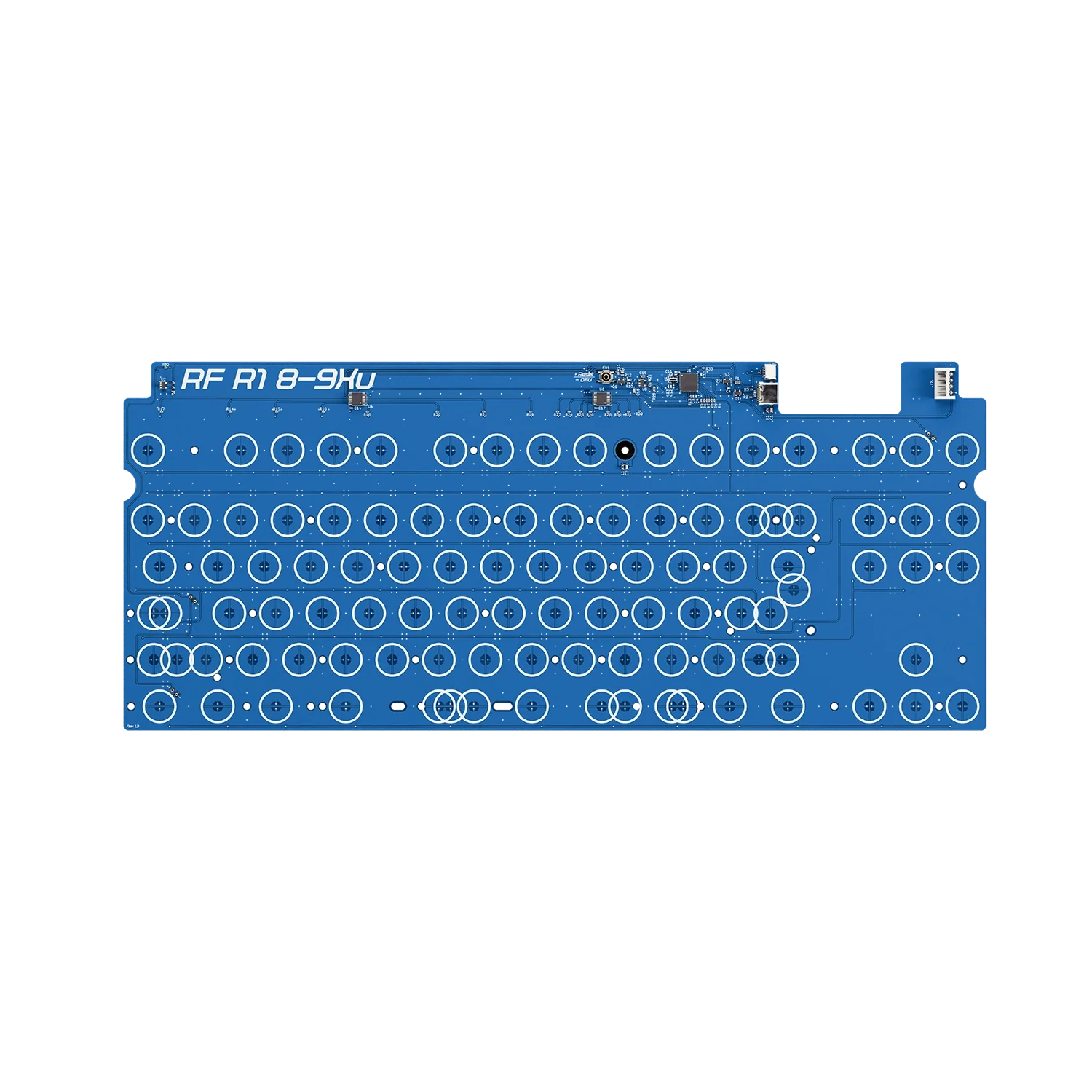

Cipulot R1 8-9Xu PCB:
•    Blue solder mask
•    Support for ANSI, ISO, and JIS layouts similar to 86u, 87u, 88u, and 89u
•    Internal support for JST cable, USB-C cable, and OEM JST EH 2.5 4-Pin connector
•    VIA support
•    Dimension: 360 x 150 x 8mm

All Plates are offered in 1.2mm Stainless Steel:
R1-86u Plate:
•    ANSI TKL layout
•    Support for 7u spacebar with 7u stabilizer spacing
•    Bottom row is 1.5u + 1u + 1.5u + 7u + 1.5u + 1u + 1.5u
•    Compatible with OEM Realforce R1 86u PCB and Cipulot R1 8-9Xu PCB
•    Includes M2.5 x 8mm low-profile hex screws
•    Dimension: 360 x 140 x 8mm

R1-87u Plate:
•    ANSI TKL layout
•    Support for 6u spacebar with 6u stabilizer spacing
•    Bottom row is 1.5u + 1u + 1.5u + 6u + 1.5u + 1u + 1u + 1.5u
•    Compatible with OEM Realforce R1 87u PCB and Cipulot R1 8-9Xu PCB
•    Includes M2.5 x 8mm low-profile hex screws
•    Dimension: 360 x 140 x 8mm

Modified R2/R3S Plate:
•    ANSI TKL Layout
•    Compatible with OEM Realforce R2/R3S ANSI TKL PCB and WK case ONLY
•    NOT compatible with Cipulot R1 8-9Xu PCB
•    Bottom row is 1.25u + 1.25u + 1.25u + 6.25u + 1.25u + 1.25u + 1.25u + 1.25u
•    Dimension: 360 x 140 x 8mm

Accessory Pack
•    Case screws, DB, JST cables, and rubber feet required for the build.
•    Purchase this as an addition to the hardware kit provided with the keyboard case
